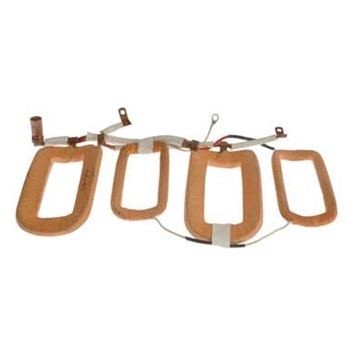

  • Field Coil, 24V

Manufacturer:O.E. Manufacturer
Voltage:24
Rotation:CW
Dimensions:89mm HT x 33mm W Pole Shoe (approx.)
Replaces:

Delco 10469230, D4257

Unit Part Numbers:

Case 104213A2, 104213A2
Caterpillar 0R8854, 0R9727, 204-9742, 6V4212, 8C4774, 8C4775, TR0395
Cummins 3675116RX, 3675117RX, 3675119RX, 3908594
Delco 10451295, 10461297, 10478811, 10478814, 10478819, 10478826, 10478927, 10478960, 10478976, 10479014, 10479020, 10479020, 10479108, 10479175, 10479179, 10479180, 10479181, 10479188, 10479196, 1993866, 1993869, 1993893, 1993901, 1993902, 1993903, 1993905, 1993909, 1993910, 1993911, 1993914, 1993917, 1993918, 1993919, 1993920, 1993921, 1993926, 1993930, 1993953, 1993954, 1993955, 1993966, 1993970, 1993972, 1993986
John Deere RE36646, RE38632, RE43300, RE44514, RE48077, RE48134, RE53404, RE53575, RE59586, RE59594, RE65175, RE65189, RE85188, SE501408, SE501410, TY24926, TY24928, TY6797
Onan 1912038
Prestolite MS3-500, MS3-500, MS3-500, MS3-500, MS3-500

Lester:6240, 6268, 6269, 6277, 6278, 6279, 6280, 6283, 6284, 6287, 6288, 6291, 6292, 6293, 6296, 6358, 6359, 6379, 6389, 6397, 6404, 6405, 6414, 6421, 6458, 6459, 6534, 6689

Part Type

Field Coil, 24V

  • Delco 37MT DD Starters

    Specifications:
    24 Volt, CW Rotation

    Features:
    • Premium Quality
    • Varnish-dipped

    Note:
    For late type starters w/o shunt terminal to solenoid

  • Part Number: 59-145
  • Availability: Special Order

  • $105.42
