| Replaces: | |
| Unit Part Numbers: | 9000700, 9000756, 9000772, 9000833, 9000839, 9000840, 9000847, 9000849, 9000859, 10465384, 10465459, 19136230 |
| Lester: | 6481, 6723, 6791, 6330-PG |
1, Shift Lever
1, Bushing (Planetery Shaft)
1, Ball Bearing (Armature C.E.)
1, Brush Assembly (12V)
1, Seal (Stationary Gear)
1, Support (Shift Lever)
1, Cover (Planetary Gears)
1, Pivot Pad (Shift Lever)
1, Stop Collar (Armature D.E.)
1, Retaining Ring (Stop Collar)
1, Stationary Gear
1, Thrust Collar
1, Needle Bearing (Armature D.E.)
2, Hex Screw (Brush Holder)
3, Torx Screw (Solenoid)
1, Bushing (Planetery Shaft)
1, Ball Bearing (Armature C.E.)
1, Brush Assembly (12V)
1, Seal (Stationary Gear)
1, Support (Shift Lever)
1, Cover (Planetary Gears)
1, Pivot Pad (Shift Lever)
1, Stop Collar (Armature D.E.)
1, Retaining Ring (Stop Collar)
1, Stationary Gear
1, Thrust Collar
1, Needle Bearing (Armature D.E.)
2, Hex Screw (Brush Holder)
3, Torx Screw (Solenoid)
Part Type

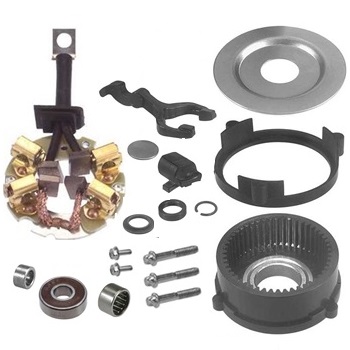

Delco PG260F1 12V Starter Rebuild kit
Services Delco PG260F1 PMGR starters
• The most complete kits on the market.
• Hand assembled from our inventory of premium parts.- Part Number: DRSKPG260F1
- Availability: In Stock
-
$43.35
