| Replaces: | |
| Unit Part Numbers: | 1114795, 1114802, 1114807, 1114808, 1114809, 1114810, 1114811, 1114812, 1114813, 1114814, 1114815, 1114817, 1114818, 1114819, 1114820, 1114821, 1114822, 1114823, 1114824, 1114825, 1114826, 1114827, 1114828, 1114829, 1114831, 1114832, 1114833, 1114834, 1114835, 1114836, 1114839, 1114843, 1114846, 1114880, 1114881, 1114882, 1114883, 1114884, 1114885, 1114886, 1114887, 1114888, 1114889, 1114890, 1114891, 1114893, 1114894, 1114895, 1114896, 1114897, 1114898, 1114899, 1114900, 1114902, 1114906, 1114908, 1114911, 1114920, 1114934, 1114937, 1114938, 1114939, 1114940, 1114943, 1114944, 1114955, 1114956, 1114957, 1114965, 1114966, 1114967, 1114975, 1114976, 1114977, 1114978, 1114984, 1114994, 1114997, 1114999, 1990200, 1990201, 1990205, 1990206, 1990208, 1990209, 1990218, 1990222, 1990223, 1990224, 1990280, 1990296, 1990299, 1990300, 1990302, 1990303, 1990304, 1990323, 1990325, 1990329, 1990335, 1990339, 1990342, 1990481, 1993703, 10451047, 10461060, 10461071, 10461073 |
| Lester: | 3046, 3073, 3290, 3339, 3342, 3374, 3745, 3758, 3766, 3770, 3907, 3948, 3955, 3974, 3978, 3979, 3987, 3999, 6202, 6228, 6229, 6231, 6236, 6237, 6238, 6243, 6258, 6349, 6501, 6517, 6526, 6528, 6530, 6649, 6781 |
1, Bushing (C.E.)
1, Bushing (D.E.)
1, Bushing (Lever Housing)
4, Brush 12V
4, Spring, (Brush)
1, Gasket (D.E. Housing)
3, Gasket (Inspection Plug)
2, Gasket (Brush Cover, Early 40MT)
1, Gasket (Starter Mounting)
1, Insulator (C.E. Terminal)
1, Grommet (Field Coil Terminal)
6, Plug (Mounting Holes)
2, O-Ring (Shift Lever Shaft)
1, O-Ring (Lever Housing)
1, O-Ring (Shift Lever Shaft)
1, Oil Seal (Lever Housing)
2, Insulator (Field Coil)
1, Insulator (Brush Terminal)
1, Connector (Field Coil)
1, Oil Wick (Lever Housing, Early 40MT)
1, Oil Wick (Lever Housing)
2, Oil Wick (C.E., D.E.)
3, Plug (Oil Wick)
3, Inspection Plug
4, Hex Screw (Brush holder)
4, Hex Screw (Brush Mounting)
4, Hex Screw (Solenoid Mounting)
4, Hex Screw (Lever Housing)
5, Allen Screw (D.E. Housing)
1, Allen Screw (D.E. Housing)
8, Phillips Screw (Pole Shoe)
1, Hex Nut, Nylon Lock (Plunger)
2, Hex Nut (Field Coil/Brush Holder Terminals)
2, Hex Nut (Field Coil/Brush Holder Terminals)
2, Hex Nut (Field Coil/Brush Holder Terminals)
4, Split Lock Washer (Solenoid Mounting)
2, Split Lock Washer (Field Coil/Brush Holder Terminals)
2, Flat Washer (Field Coil/Brush Holder Terminals)
1, Thrust Washer (Armature, C.E.)
1, Spacer (Lever Housing)
4, Insulated Washer (Field Coil/Brush Holder Terminals)
1, Brake Washer (Armature, D.E.)
1, Snap Ring (Plunger, Shift Lever Shaft)
Part Type

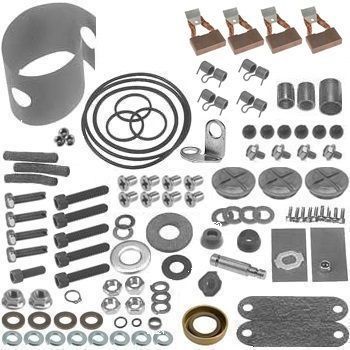

Delco 40MT 12V 4-brush Starter Rebuild kit
Services Delco 40MT series 12V DD 4-brush starters
• The most complete kits on the market.
• Hand assembled from our inventory of premium parts.- Part Number: DRSK40MT-12-4BR
- Availability: In Stock
-
$117.96
