| Replaces: | |
| Unit Part Numbers: | 1985337, 1990308, 1990309, 1990310, 1990311, 1990312, 1990313, 1990315, 1990316, 1990317, 1990318, 1990319, 1990320, 1990321, 1990322, 1990326, 1990327, 1990336, 1990341, 1990347, 1990498, 1993705, 1993709, 1993712, 1993713, 1993719, 1993726, 1993728, 1993736, 1993737, 1993738, 1993745, 1993746, 1993754, 1993755, 1993756, 1993759, 1993761, 1993762, 1993763, 1993764, 1993765, 1993767, 1993768, 1993769, 1993770, 1993778, 1993787, 1993789, 1993790, 1993791, 1993792, 1993793, 1993794, 1993799, 1993800, 1993817, 1993818, 1993819, 1993832, 1993837, 1993850, 1993851, 1993853, 1993854, 1993855, 1993865, 1993866, 1993869, 1993871, 1993873, 1993874, 1993878, 1993879, 1993880, 1993881, 1993883, 1993884, 1993885, 1993886, 1993887, 1993891, 1993893, 1993894, 1993896, 1993898, 1993928, 1993931, 1993947, 1993950, 1993951, 1993956, 1993957, 1993958, 1993963, 1993964, 1993965, 1993967, 1993969, 1993970, 1993971, 1993974, 1993979, 1993981, 1993988, 1993992, 1993994, 1993997, 10457194, 10461001, 10461002, 10461003, 10461004, 10461005, 10461006, 10461007, 10461008, 10461009, 10461011, 10461012, 10461013, 10461014, 10461039, 10461044, 10461058, 10461066, 10461069, 10461081, 10461082, 10461089, 10461094, 10461098, 10461108, 10461110, 10461152, 10461169, 10461207, 10461209, 10461210, 10461220, 10461225, 10461298, 10461299, 10461330, 10461416, 10478805, 10478806, 10478825, 10478831, 10478890, 10478921, 10478927, 10478928, 10478929, 10478930, 10478949, 10478953, 10478957, 10478970, 10479014, 10479015, 10479016, 10479034, 10479036, 10479047, 10479054, 10479068, 10479069, 10479106, 10479107, 10479169, 10479170, 10479174, 10479176, 10479187, 10479195, 10479214, 10479305 |
| Lester: | 6140, 6204, 6205, 6206, 6239, 6267, 6270, 6271, 6275, 6279, 6282, 6284, 6285, 6286, 6289, 6290, 6294, 6295, 6296, 6297, 6298, 6299, 6348, 6353, 6379, 6380, 6382, 6383, 6384, 6385, 6386, 6387, 6388, 6391, 6392, 6393, 6394, 6395, 6398, 6399, 6400, 6402, 6403, 6404, 6408, 6410, 6412, 6444, 6447, 6453, 6454, 6456, 6457, 6460, 6461, 6462, 6463, 6464, 6465, 6504, 6505, 6522, 6523, 6545, 6660, 6661, 6752, 6753, 6905, 6906, 6907 |
1, Shaft (Shift Lever)
2, Bushing (D.E., C.E.)
1, Bushing (L.H.)
4, Brush (12V)
4, Brush Spring
1, Gasket (Inspection Plug)
1, Grommet (Field Coil Terminal)
8, Plug (D.E. Mounting Holes)
1, Grommet (Motor Lead)
1, O-Ring (Shift Lever Shaft)
1, O-Ring (Lever Housing)
1, O-Ring (Shift Lever)
1, O-Ring (Lever Housing to Solenoid)
1, O-Ring (Field Case to C.E. Frame)
1, O-Ring (D.E. Housing)
4, O-Ring (C.E. Frame Screw)
1, Oil Seal (Lever Housing)
1, Insulator (Field Coil)
3, Insulator (C.E. Terminal)
1, Insulator (Field Coil Terminal)
1, Connector (Field Coil to Solenoid)
1, Stop Collar
1, Retaining Ring (Stop Collar)
3, Plug (Oil Reservoir)
3, Oil Wick
1, Inspection Plug (Lever Housing)
4, Hex Screw (Brush)
4, Thru Bolt (C.E. Cover)
5, Hex Screw (Field Terminal)
2, Hex Screw (Lever Housing)
6, Allen Bolt (D.E. Housing)
8, Phillips Screw (Pole Shoe)
1, Hex Nut (Solenoid Plunger)
1, Hex Nut (Solenoid Post)
4, Conical Washer (C.E. Cover Thru Bolt)
4, Lock Washer (Lever Housing)
1, Split Lock Washer (C.E. Terminal)
1, Flat Washer (Armature C.E.)
1, Flat Washer (Armature D.E.)
1, Brake Washer (Armature D.E.)
1, External Snap Ring (Shift Lever Shaft)
Part Type

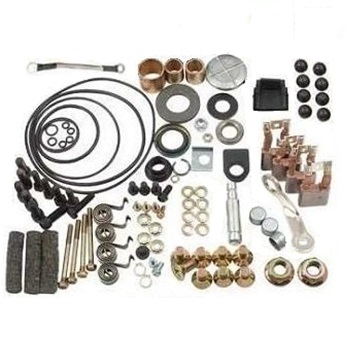

Delco 37MT 12V Starter Rebuild kit
Services Delco 37MT 12V, early & late / 1st & 2nd production starters
• The most complete kits on the market.
• Hand assembled from our inventory of premium parts.- Part Number: DRSK37MT-12
- Availability: In Stock
-
$97.47
