| Unit Part Numbers: | 1113272, 1113277, 1113291, 1113294, 10461283, 10461444, 10461453, 10461459, 10461461, 10461464, 10461465, 10461468, 10461469, 10461470, 10461472, 10461486, 10465015, 10465405, 10479600, 10479605, 10479608, 10479611, 10479612, 10479616, 10479622, 10479623, 10479626, 10479627, 10479629, 10479647, 10479650 |
| Lester: | 6574, 6582, 6591, 6592, 6594, 6596, 6597, 6598, 6605, 6901, 6902, 18371 |
3, Bushing D.E. (Drive)
2, Brush (Ground) 24V
2, Brush (Field) 24V
4, Brush Spring
2, Ring (Drive Shaft Frame)
2, O-Ring (Brush Holder)
1, Gasket (C.S. Frame)
1, Seal (D.E. Housing)
1, O-Ring (C.E Frame)
1, Oil Seal (Drive Shaft Frame)
1, Insulator (Field Coil)
1, Plate (Shift Lever Pivot)
1, Collar, Stop
1, Retainer (Collar, Stop)
1, Stop Collar (14mm Shaft)
1, Retaining Ring (14mm Drive Shaft)
1, Terminal Kit (Field Coil)
4, Screw (Brush Mounting)
2, Screw (Solenoid Mount)
2, Screw (Brush Holder)
1, Washer (Planetary Shaft)
2, Washer (Planetary Shaft)
2, Thru-Bolt (Casing)
2, Brush (Ground) 24V
2, Brush (Field) 24V
4, Brush Spring
2, Ring (Drive Shaft Frame)
2, O-Ring (Brush Holder)
1, Gasket (C.S. Frame)
1, Seal (D.E. Housing)
1, O-Ring (C.E Frame)
1, Oil Seal (Drive Shaft Frame)
1, Insulator (Field Coil)
1, Plate (Shift Lever Pivot)
1, Collar, Stop
1, Retainer (Collar, Stop)
1, Stop Collar (14mm Shaft)
1, Retaining Ring (14mm Drive Shaft)
1, Terminal Kit (Field Coil)
4, Screw (Brush Mounting)
2, Screw (Solenoid Mount)
2, Screw (Brush Holder)
1, Washer (Planetary Shaft)
2, Washer (Planetary Shaft)
2, Thru-Bolt (Casing)
Part Type

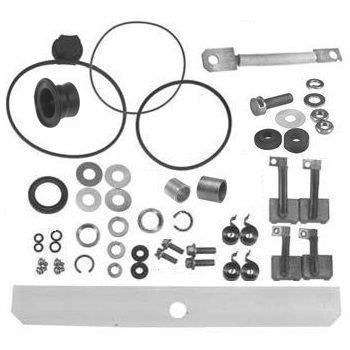

Delco 28MT 24V Starter Rebuild Kit
Services Delco 28MT series 24V OSGR starters.
• The most complete kits on the market.
• Hand assembled from our inventory of premium parts.- Part Number: DRSK28MT24
- Availability: In Stock
-
$72.06
