Unknown: Automatic conversion of false to array is deprecated in /home2/wzqdbite/aspwholesale.sprexetechnologies.com/storage/modification/catalog/controller/startup/startup.php on line 77 Delco 26SI 12V Alternator Repair Kit

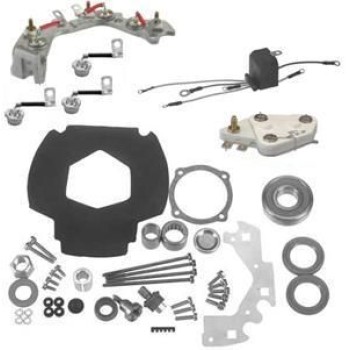

  • Delco 26SI 12V Alternator Repair Kit

Replaces:


Unit Part Numbers:

10459063, 10459065, 10459067, 10459068, 10459073, 10459074, 10459099, 10459101, 10459132, 10459161, 10459162, 1117280, 19010003, 19010005, 19010007, 19010009, 19010010, 19010011, 19010012, 19010013, 19010014, 19010018, 19010019, 19010021

Lester:8060, 8064, 8065, 8066
3, Heavy Duty negative diode (35A)
1, Diode Trio
1, Ball bearing
1, Needle Bearing
1, Bearing Inner Race
1, Gasket (Rectifier Cover)
1, Gasket (Bearing Retainer)
1, Boot (Relay Terminal)
1, Grommet (Lead Support)
1, Boot, Battery Terminal
1, Seal (D.E. Bearing)
1, Insulator (Rectifier)
1, Insulator (Capacitor)
1, Battery Terminal (Female)
1, Battery Terminal (Male)
1, Mounting Bushing
1, Bearing Cover Plug
4, Screw (Rectifier Cover)
4, Screw (Bearing Retainer)
4, Screw (Rectifier Cover)
1, Screw (Rotor Coil)
4, Thru Bolt (Casing)
1, Hex Nut (Pulley)
4, External Tooth Lock Washer
1, Flat Washer (Pulley)
1, Heavy Duty voltage regulator
1, Heavy Duty rectifier

Part Type

Delco 26SI 12V Alternator Repair Kit

  • Repair kit for Delco 26SI 12V Series alternators

    • Transpo Heavy Duty Pos. Rectifier
    • Transpo Heavy Duty Regulator
    • O.E. Delco Diode Trio
    • Premium WBD Bearings
    • Gaskets & Seals
    • Small Parts & Hardware

  • Part Number: DR26SI12VK
  • Availability: In Stock
  • $155.76
